SMS Modem: SMS Send Settings
Ejoin SMS Modem Send SMS Basic Settings

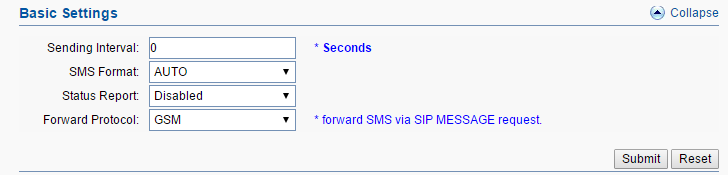

Figure 1 SMS Modem Send SMS Basic Settings
| Items | Description |
| Sending Interval | The SMS sending interval when bulk SMS send to one port |
| SMS Format | PDU and TXT. |
| Status Report | SMS status report. If it is enabled, after sending SMS successfully, it will get a status report from operator such as sending successfully. |
| Forward Protocol | GSM: forward SMS to another mobile by GSM forward protocol. (need set the SMS center number and receiver number) SIP: forward SMS to a server by SIP message request.(need set the server IP) HTTP: forward SMS to a server by http request, you need develop the server follow Ejoin HTTP SMS forwarding API. |
Ejoin SMS Modem Scheduled Sending
Figure 2 Ejoin SMS Modem Scheduled Sending
| Items | Description |
| Content | SMS content. The length is limited to 300 ASCII characters. |
| Recipients | The phone number of receiver. Semi-colon can be used to separate multiple receivers. |
| Send To Local SIM | Enable this button. Gateway will do inter-port SMS sending (need set SIM number in every channel first), it’s random and by the condition below. For example: channel 1 sends SMS to port 3. |
| By Duration | SMS sending by device online time, and the time between minimum minutes and maximum minutes. |
| By Duration | SMS sending by device online time, and the time between minimum minutes and maximum minutes. |
| By Consecutive Failed Calls | SMS sending by consecutive failed calls. |
| By Consecutive Calls | SMS sending by consecutive calls. |
| By Call Duration | SMS sending by SIM call duration. |
Ejoin SMS Modem Send SMS
You can select one or more ports to send SMS to different receiver. Successful and failed SMS records will be show below.
Figure 3 Ejoin SMS Modem Send SMS
